Multi-platform RabbitMQ Deployment

With ZeroMQ based VOLTTRON, multi-platform communication was accomplished in three different ways:

  1. Direct connection to remote instance - Write an agent that would connect to a remote instance directly.
  2. Special agents - Use special agents such as forward historian/data puller agents that would forward/receive messages to/from remote instances. In RabbitMQ-VOLTTRON, we make use of the shovel plugin to achieve this behavior. Please refer to Shovel Plugin to get an overview of shovels.
  3. Multi-Platform RPC and PubSub - Configure VIP address of all remote instances that an instance has to connect to in it’s $VOLTTRON_HOME/external_discovery.json and let the router module in each instance manage the connection and take care of the message routing for us. In RabbitMQ-VOLTTRON, we make use of the federation plugin to achieve this behavior. Please refer to Federation Plugin get an overview of federation.

Using the Federation Plugin

We can connect multiple VOLTTRON instances using the federation plugin. Before setting up federation links, we need to first identify the upstream server and downstream server. The upstream server is the node that is publishing some message of interest and downstream server is the node that wants to receive messages from the upstream server. A federation link needs to be established from the downstream VOLTTRON instance to the upstream VOLTTRON instance. To setup a federation link, we will need to add upstream server information in a RabbitMQ federation configuration file:

Path: $VOLTTRON_HOME/rabbitmq_federation_config.yml

# Mandatory parameters for federation setup
federation-upstream:
  rabbit-4:
    port: '5671'
    virtual-host: volttron4
  rabbit-5:
    port: '5671'
    virtual-host: volttron5

To configure the VOLTTRON instance to setup federation, run the following command:

vcfg --rabbitmq federation [optional path to rabbitmq_federation_config.yml]

This will setup federation links to upstream servers and sets policy to make the VOLTTRON exchange federated. Once a federation link is established to remote instance, the messages published on the remote instance become available to local instance as if it were published on the local instance.

For detailed instructions to setup federation, please refer to the platform installation docs.

Multi-Platform RPC With Federation

For multi-platform RPC communication, federation links need to be established on both the VOLTTRON nodes. Once the federation links are established, RPC communication becomes fairly simple.

../../_images/multiplatform_rpc.png

Consider Agent A on VOLTTRON instance “volttron1” on host “host_A” wants to make RPC call to Agent B on VOLTTRON instance “volttron2” on host “host_B”.

  1. Agent A makes RPC call.
kwargs = {"external_platform": self.destination_instance_name}
agent_a.vip.rpc.call("agent_b", set_point, "point_name", 2.5, \**kwargs)
  1. The message is transferred over federation link to VOLTTRON instance “volttron2” as both the exchanges are made federated.
  2. The RPC subsystem of Agent B calls the actual RPC method and gets the result. It encapsulates the message result into a VIP message object and sends it back to Agent A on VOLTTRON instance “volttron1”.
  3. The RPC subsystem on Agent A receives the message result and gives it to the Agent A application.

Multi-Platform PubSub With Federation

For multi-platform PubSub communication, it is sufficient to have federation link from the downstream server to the upstream server. In case of bi-directional data flow, links have to established in both the directions.

../../_images/multiplatform_pubsub.png

Consider Agent B on VOLTTRON instance “volttron2” on host “host_B” which wants to subscribe to messages from VOLTTRON instance “volttron2” on host “host_B”. First, a federation link needs to be established from “volttron2” to “volttron1”.

  1. Agent B makes a subscribe call:
agent_b.vip.subscribe.call("pubsub", prefix="devices", all_platforms=True)
  1. The PubSub subsystem converts the prefix to __pubsub__.*.devices.#. Here, “*” indicates that agent is subscribing to the “devices” topic from all VOLTTRON platforms.
  2. A new queue is created and bound to VOLTTRON exchange with the above binding key. Since the VOLTTRON exchange is a federated exchange, any subscribed message on the upstream server becomes available on the federated exchange and Agent B will be able to receive it.
  3. Agent A publishes message to topic devices/pnnl/isb1/hvac1
  4. The PubSub subsystem publishes this message on it’s VOLTTRON exchange.
  5. Due to the federation link, message is received by the Pubsub subsystem of Agent A.

Using the Shovel Plugin

Shovels act as well written client applications which move messages from a source to a destination broker. The below configuration shows how to setup a shovel to forward PubSub messages or perform multi-platform RPC communication from local to a remote instance. It expects hostname, port and virtual host configuration values for the remote instance.

Path: $VOLTTRON_HOME/rabbitmq_shovel_config.yml

# Mandatory parameters for shovel setup
shovel:
  rabbit-2:
    port: '5671'
    virtual-host: volttron
    # Configuration to forward pubsub topics
    pubsub:
      # Identity of agent that is publishing the topic
      platform.driver:
        - devices
    # Configuration to make remote RPC calls
    rpc:
      # Remote instance name
      volttron2:
        # List of pair of agent identities (local caller, remote callee)
        - [scheduler, platform.actuator]

To forward PubSub messages, the topic and agent identity of the publisher agent is needed. To perform RPC, the instance name of the remote instance and agent identities of the local agent and remote agent are needed.

To configure the VOLTTRON instance to setup shovel, run the following command.

vcfg --rabbitmq shovel [optional path to rabbitmq_shovel_config.yml]

This setups up a shovel that forwards messages (either PubSub or RPC) from local exchange to remote exchange.

Multi-Platform PubSub With Shovel

After the shovel link is established for Pubsub, the below figure shows how the communication happens.

Note

For bi-directional pubsub communication, shovel links need to be created on both the nodes. The “blue” arrows show the shovel binding key. The pubsub topic configuration in $VOLTTRON_HOME/rabbitmq_shovel_config.yml gets internally converted to the shovel binding key: “__pubsub__.<local instance name>.<actual topic>”.

../../_images/multiplatform_shovel_pubsub.png

Now consider a case where shovels are setup in both the directions for forwarding “devices” topic.

  1. Agent B makes a subscribe call to receive messages with topic “devices” from all connected platforms.
agent_b.vip.subscribe.call("pubsub", prefix="devices", all_platforms=True)
  1. The PubSub subsystem converts the prefix to __pubsub__.*.devices.# “*” indicates that agent is subscribing to the “devices” topic from all the VOLTTRON platforms.
  2. A new queue is created and bound to VOLTTRON exchange with above binding key.
  3. Agent A publishes message to topic devices/pnnl/isb1/hvac1
  4. PubSub subsystem publishes this message on it’s VOLTTRON exchange.
  5. Due to a shovel link from VOLTTRON instance “volttron1” to “volttron2”, the message is forwarded from VOLTTRON exchange “volttron1” to “volttron2” and is picked up by Agent A on “volttron2”.

Multi-Platform RPC With Shovel

After the shovel link is established for multi-platform RPC, the below figure shows how the RPC communication happens.

Note

It is mandatory to have shovel links on both directions as it is request-response type of communication. We will need to set the agent identities for caller and callee in the $VOLTTRON_HOME/rabbitmq_shovel_config.yml. The “blue” arrows show the resulting the shovel binding key.

../../_images/multiplatform_shovel_rpc.png

Consider Agent A on VOLTTRON instance “volttron1” on host “host_A” wants to make RPC call on Agent B on VOLTTRON instance “volttron2” on host “host_B”.

  1. Agent A makes RPC call:
kwargs = {"external_platform": self.destination_instance_name}
agent_a.vip.rpc.call("agent_b", set_point, "point_name", 2.5, \**kwargs)
  1. The message is transferred over shovel link to VOLTTRON instance “volttron2”.
  2. The RPC subsystem of Agent B calls the actual RPC method and gets the result. It encapsulates the message result into a VIP message object and sends it back to Agent A on VOLTTRON instance “volttron1”.
  3. The RPC subsystem on Agent A receives the message result and gives it to Agent A’s application.

Multi-Platform Communication With RabbitMQ SSL

For multi-platform communication over federation and shovel, we need the connecting instances to trust each other.

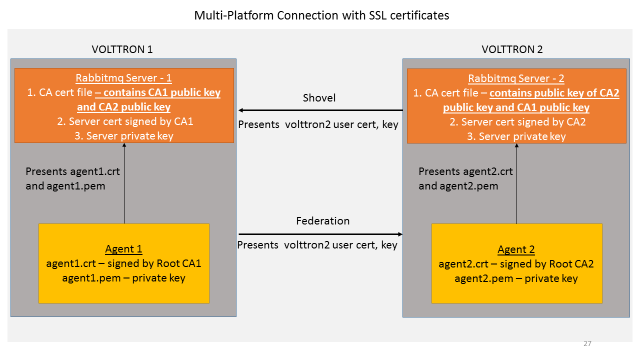

../../_images/multiplatform_ssl.png

Suppose there are two VMs (VOLTTRON1 and VOLTTRON2) running single instances of RabbitMQ, and VOLTTRON1 and VOLTTRON2 want to talk to each other via either the federation or shovel plugins. In order for VOLTTRON1 to talk to VOLTTRON2, VOLTTRON1’s root certificate must be appended to VOLTTRON’s trusted CA certificate, so that when VOLTTRON1 presents it’s root certificate during connection, VOLTTRON2’s RabbitMQ server can trust the connection. VOLTTRON2’s root CA must be appended to VOLTTRON1’s root CA and it must in turn present its root certificate during connection, so that VOLTTRON1 will know it is safe to talk to VOLTTRON2.

Agents trying to connect to remote instance directly need to have a public certificate signed by the remote instance for authenticated SSL based connection. To facilitate this process, the VOLTTRON platform exposes a web based server API for requesting, listing, approving and denying certificate requests. For more detailed description, refer to Agent communication to Remote RabbitMQ instance
